HACINT

Decouvrez notre selection HACINT dediee aux solutions de cablage et d'automatisation industrielles.

Product characteristics： ● Data display: It can simultaneously display real-time tension and peak tension; ● Data processing: Recording data during testing, with capabilities for data transmission and data clearance, facilitating data processing; ● Unit conversion: Kg and N unit conversion, and it can be set to power-on state; ● Force limit setting: Setting the upper and lower limits of the test force. An alarm prompt will be given when the testing force value is below the lower limit; ● System settings: Providing a corresponding settings interface for easy configuration of system parameters such as test upper and lower limits, calibration, and pull-off conditions.
HARNESS TEST SERIES

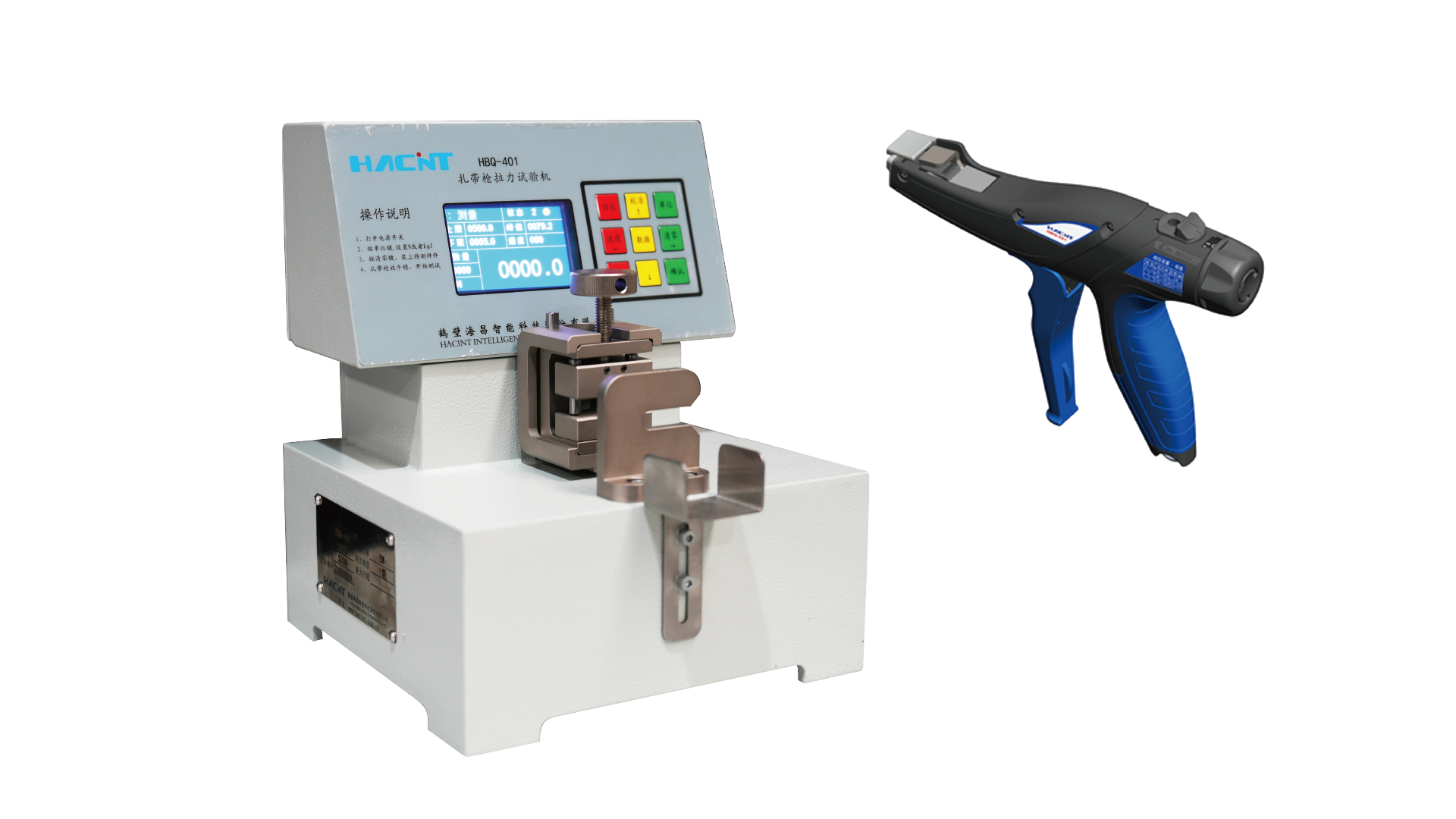

HBQ-401 Cable Tie Gun Tester

HBQ-401 cable tie gun tester is a special measuring equipments used for detecting the force when the cable tie gun cuts the tie.

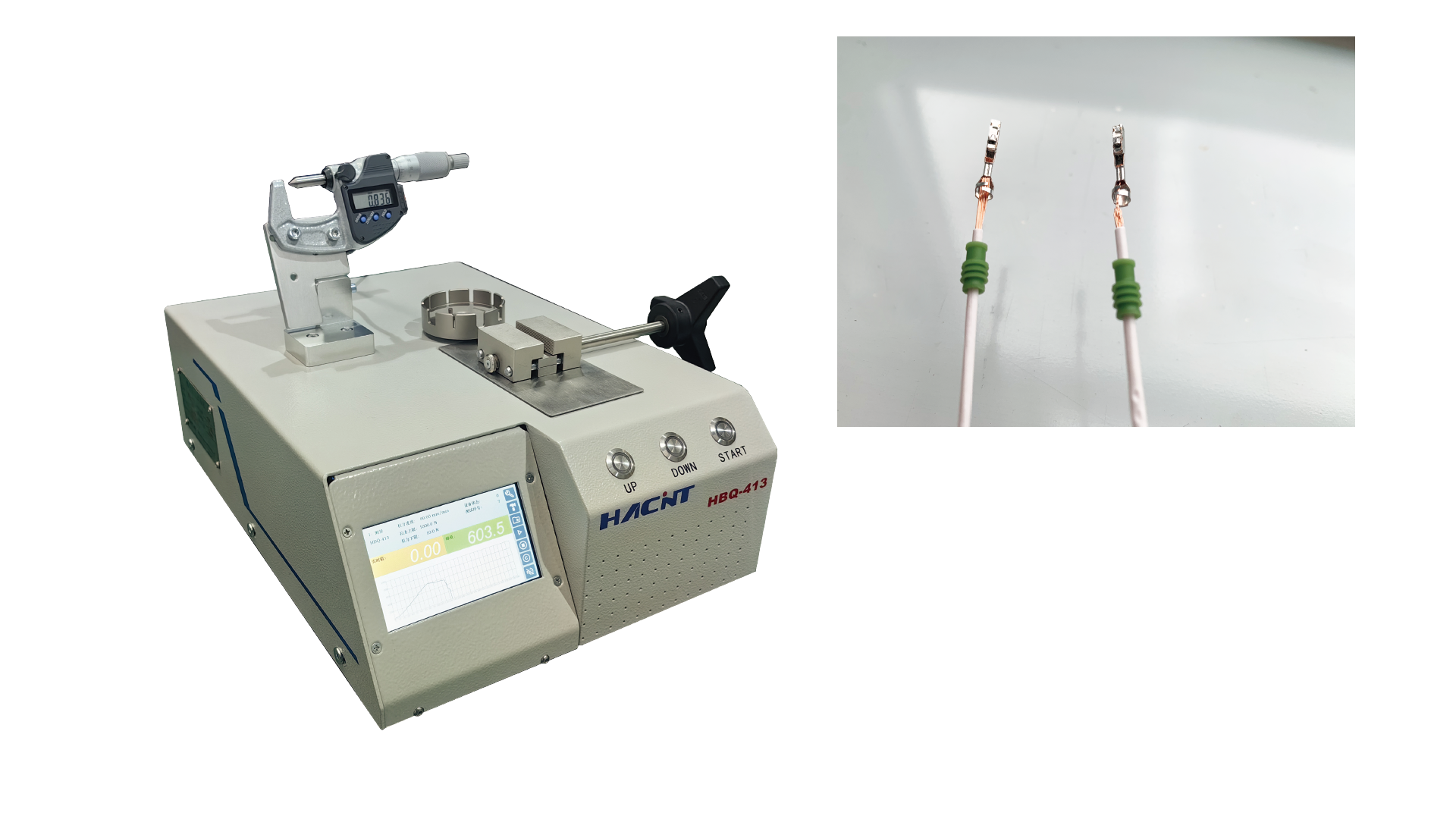

HBQ-413 Pull Foce Tester Product characteristics： ● Versatility: It can perform height testing, tensile force testing, and data processing; It can display the tensile force data in real time on the screen; ● Precision: It can achieve tension measurement with a precision of 0.5 grade, and calibration is convenient; Both tension discs and clamps can be customized to accommodate different wire harnesses; Related products / accessories ● Optional accessories: Tooling can be customized.
HARNESS TEST SERIES

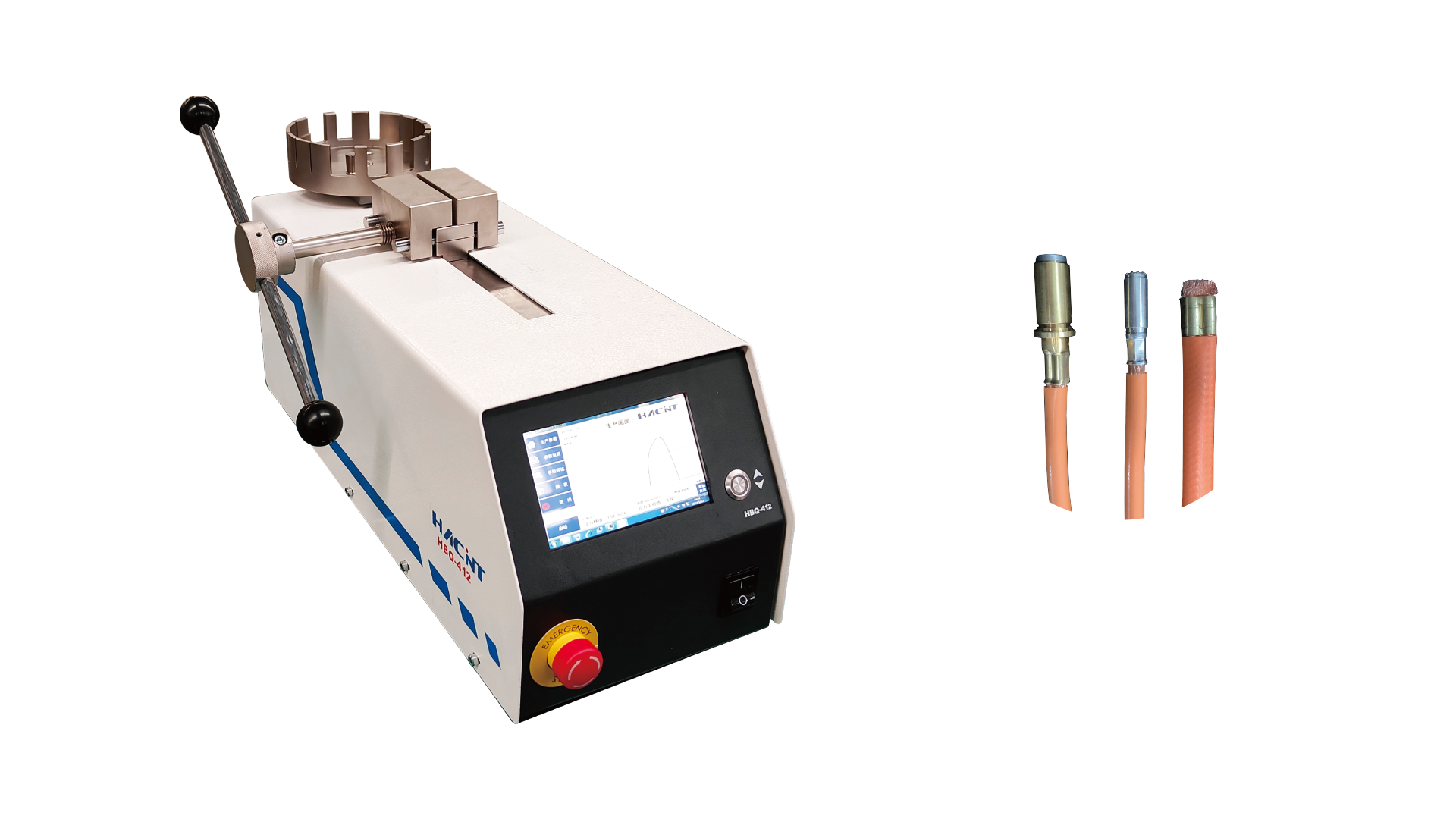

HBQ-413 Pull Foce Tester

HBQ-413 is a micrometer-integrated tensile testing machine, an all-in-one machine that combines crimping height detection and tensile force testing.

Product characteristics： Compact: Exquisite and desktop; Flexible: The tension plate and fixture can be customized to adapt to different wire harnesses Powerful: The testing process is controlled by a microcomputer, which can dynamically display the tension value, displacement value, deformation value, testing speed, and testing curve in real time;
HARNESS TEST SERIES

HBQ-412 10KN Pull Force Tester

HBQ-412 developed specifically for detecting the pull-out force of large square wire harness and terminals, capable of detecting pull force up to 10000N

Product characteristics： ● Automatic reset: The automatic reset conditions can be set, and it will automatically reset after the terminal is pulled off; ● System settings: It is convenient to set system parameters such as test upper and lower limits, calibration, and pull off conditions; ● Force limit restriction: Alarm prompts when the test force value exceeds the set upper and lower limits; ● Unit conversion: Quick conversion between kg and N units, which can be set to be enabled at startup; ● Communication connection: It can send instructions to control the testing machine through serial port/network port (411), return peak tension values, and also enable data interaction to return text data or import into the MES system (Communication protocol is open); ● Data display: It can simultaneously display real-time tension and peak tension; ● Data processing: Testing data can be recorded, transmitted, and cleared, facilitating data processing.
HARNESS TEST SERIES

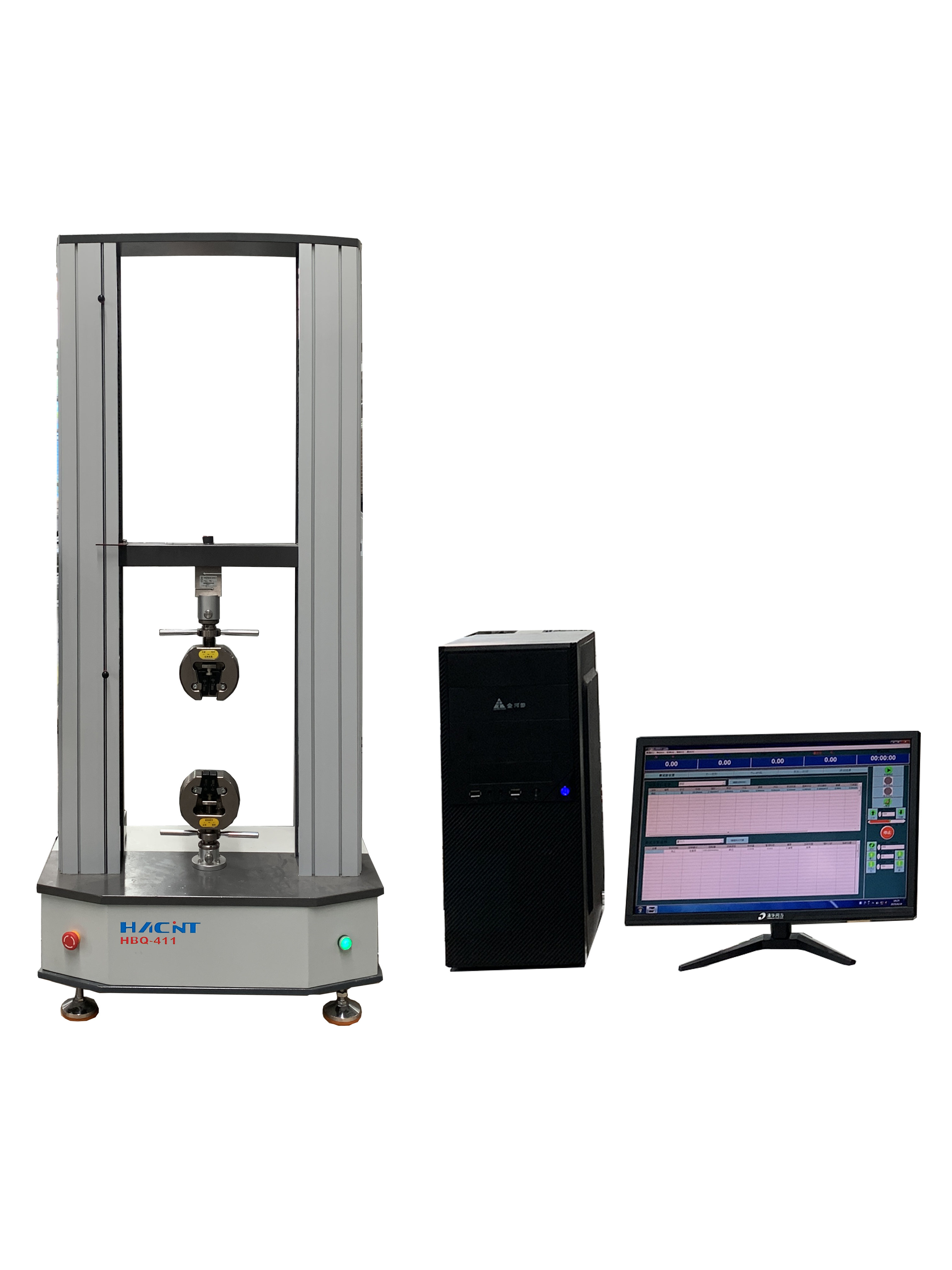

HBQ-411 PULL FORCE TESTER

HBQ-06X Digital pull tester series are specially used to test the pull-out force of the crimped terminals, welded terminals and the seals. Embedded system is adopted with high efficiency, notable stability and high preci…

Product characteristics： ● Automatic reset: The automatic reset conditions can be set, and it will automatically reset after the terminal is pulled off; ● System settings: It is convenient to set system parameters such as test upper and lower limits, calibration, and pull off conditions; ● Force limit restriction: Alarm prompts when the test force value exceeds the set upper and lower limits; ● Unit conversion: Quick conversion between kg and N units, which can be set to be enabled at startup; ● Communication connection: It can send instructions to control the testing machine through serial port/network port (411), return peak tension values, and also enable data interaction to return text data or import into the MES system (Communication protocol is open); ● Data display: It can simultaneously display real-time tension and peak tension; ● Data processing: Testing data can be recorded, transmitted, and cleared, facilitating data processing.
HARNESS TEST SERIES

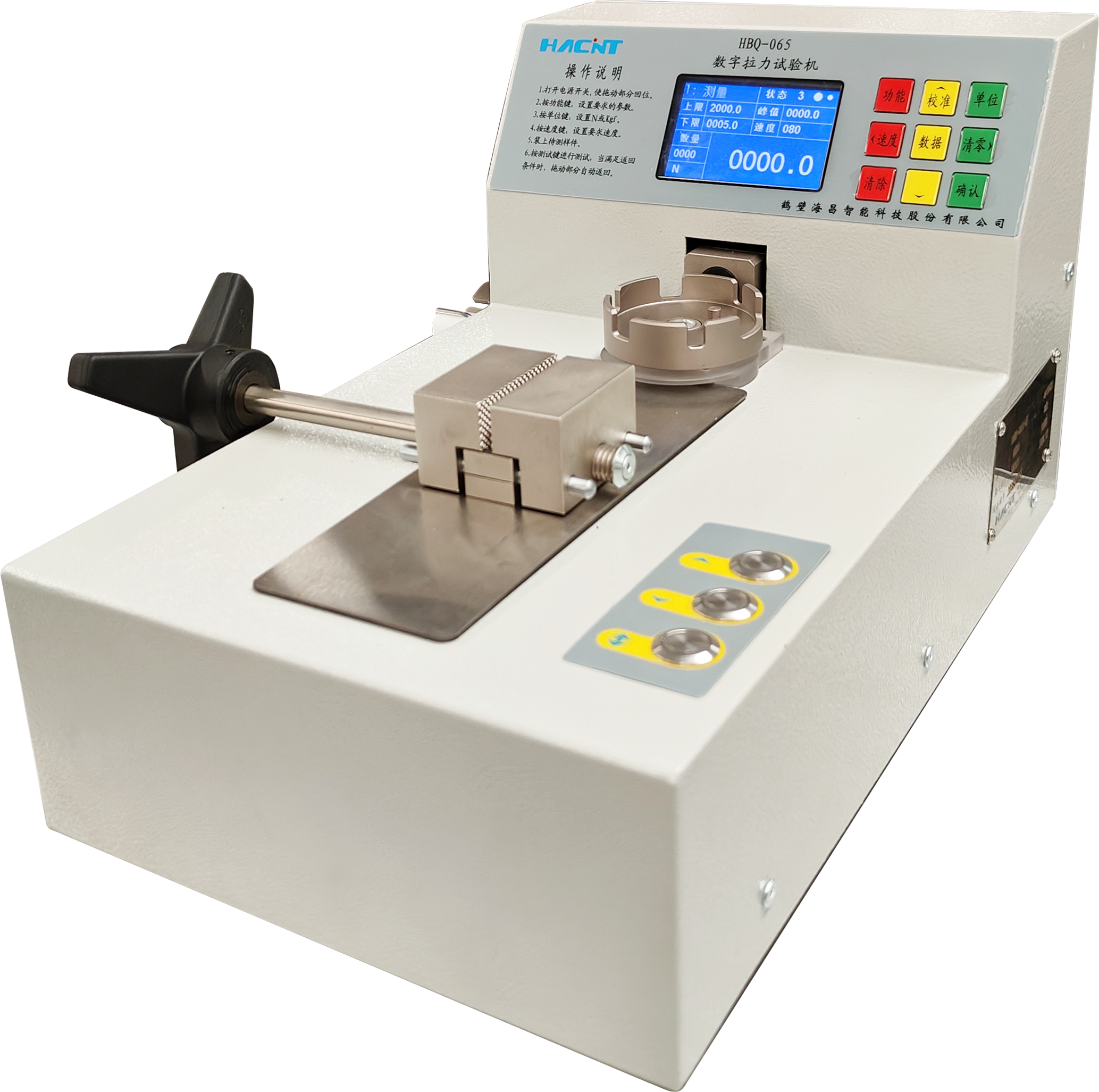

HBQ-065 Pull Force Tester

HBQ-06X Digital pull tester series are used to test the pull-out force of the crimped terminals, welded terminals and the seals. Embedded system is adopted with high efficiency, notable stability and high precision. HBQ…

HBQ-064 Pull Force Tester Product characteristics： ● Automatic reset: The automatic reset conditions can be set, and it will automatically reset after the terminal is pulled off; ● System settings: It is convenient to set system parameters such as test upper and lower limits, calibration, and pull off conditions; ● Force limit restriction: Alarm prompts when the test force value exceeds the set upper and lower limits; ● Unit conversion: Quick conversion between kg and N units, which can be set to be enabled at startup; ● Communication connection: It can send instructions to control the testing machine through serial port/network port (411), return peak tension values, and also enable data interaction to return text data or import into the MES system (Communication protocol is open); ● Data display: It can simultaneously display real-time tension and peak tension; ● Data processing: Testing data can be recorded, transmitted, and cleared, facilitating data processing.
HARNESS TEST SERIES

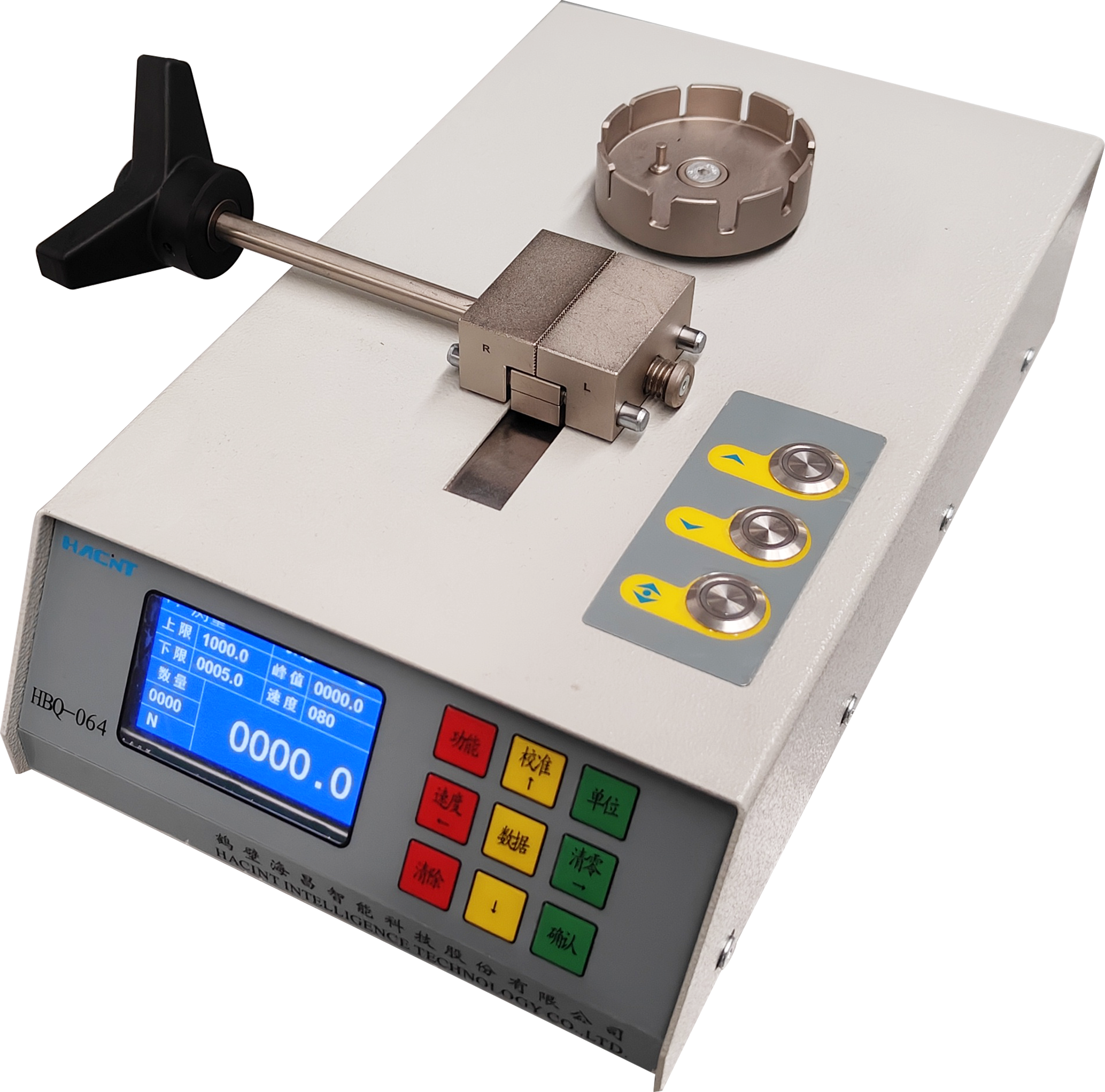

HBQ-064 Pull Force Tester

HBQ-06X Digital pull tester series are used to test the pull-out force of the crimped terminals, welded terminals and the seals. Embedded system is adopted with high efficiency, notable stability and high precision. HBQ…

HBQ-061C Pull Force Tester Product characteristics： ● Automatic reset: The automatic reset conditions can be set, and it will automatically reset after the terminal is pulled off; ● System settings: It is convenient to set system parameters such as test upper and lower limits, calibration, and pull off conditions; ● Force limit restriction: Alarm prompts when the test force value exceeds the set upper and lower limits; ● Unit conversion: Quick conversion between kg and N units, which can be set to be enabled at startup; ● Communication connection: It can send instructions to control the testing machine through serial port/network port (411), return peak tension values, and also enable data interaction to return text data or import into the MES system (Communication protocol is open); ● Data display: It can simultaneously display real-time tension and peak tension; ● Data processing: Testing data can be recorded, transmitted, and cleared, facilitating data processing.
HARNESS TEST SERIES

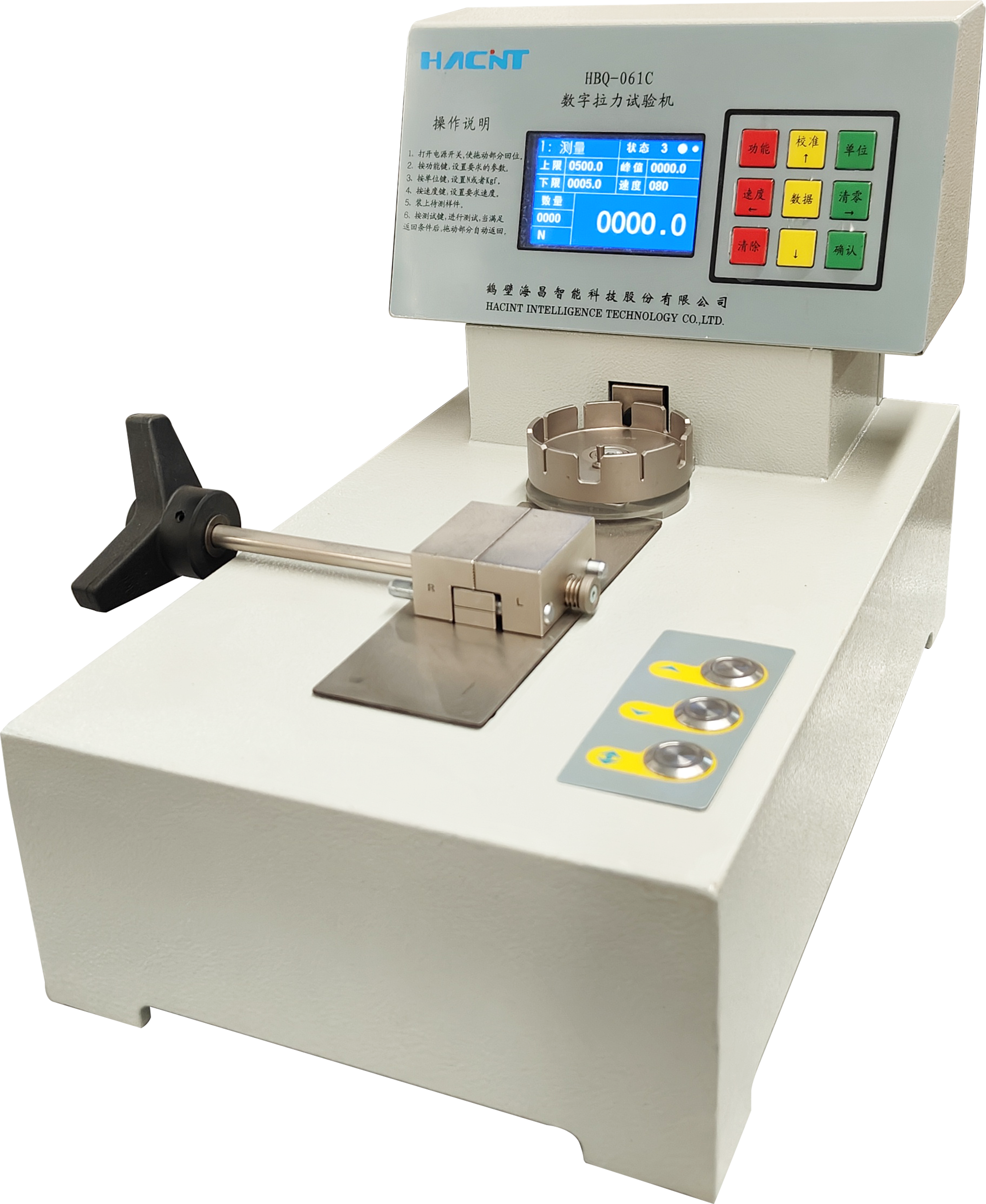

HBQ-061C Pull Force Tester

HBQ-06X Digital pull tester series are used to test the pull-out force of the crimped terminals, welded terminals and the seals. Embedded system is adopted with high efficiency, notable stability and high precision. HBQ…

Product characteristics： ● Convenient operation: Ergonomic design, modular assembly, and streamlined workflow make operation more convenient and comfortable; ● Simple structure: One-time clamping, one-step completion, simple and quick cutting and grinding; ● Ultra-thin cutting: Special ultra-thin cutting grinding wheel for 0.5/0.6mm thickness, ensuring a smooth cutting surface for easy polishing; ● Precision transmission: Precision guide rail transmission ensures smoother cutting and grinding, resulting in more stable quality; ● Clear corrosion: Manual corrosion using acid/electrolyte solution results in a more uniform cross-section treatment and a more aesthetically pleasing image; ● Fixed magnification camera: The perfect combination of a high-quality optical system and a high-resolution camera makes the cross-section images clearer. The unique fixed-magnification and fixed-gear setting makes the measurement more accurate; ● Variable-speed motor: The three-phase motor is controlled by a frequency converter, featuring high starting torque and adjustable motor speed, meeting different requirements customer's needs.
HARNESS TEST SERIES

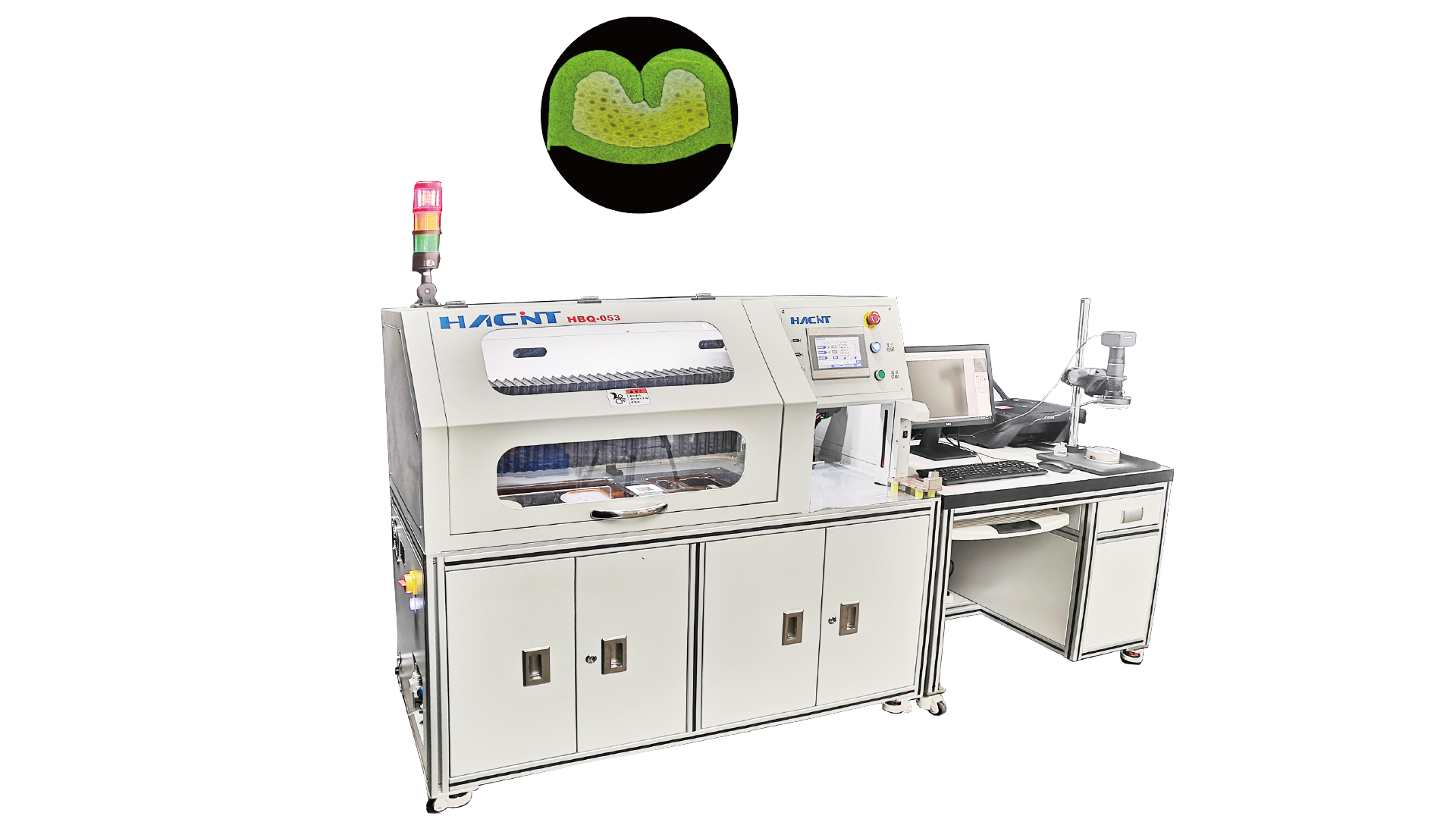

HBQ-053 Cross Section Analysis Center

This measuring equipment designed professioanlly to guarantee high quality for wire harness industry,it will take 3～5minutes to go through procedures such as incision, erosion , cross-sectional image processing , testing…

Product characteristics： ● Convenient operation: Ergonomic design, modular assembly, and streamlined workflow make operation more convenient and comfortable; ● Simple structure: One-time clamping, one-step completion, simple and quick cutting and grinding; ● Ultra-thin cutting: Special ultra-thin cutting grinding wheel for 0.5mm thickness, ensuring a smooth cutting surface for easy polishing; ● Precision transmission: Precision guide rail transmission ensures smoother cutting and grinding, resulting in more stable quality; ● Clear corrosion: Manual corrosion using acid/electrolyte solution results in a more uniform cross-section treatment and a more aesthetically pleasing image; ● Fixed magnification camera: The perfect combination of a high-quality optical system and a high-resolution camera makes the cross-section images clearer. The unique fixed-magnification and fixed-gear setting makes the measurement more accurate; ● Variable-speed motor: The three-phase motor is controlled by a frequency converter, featuring high starting torque and adjustable motor speed, meeting different requirements customer's needs.
HARNESS TEST SERIES

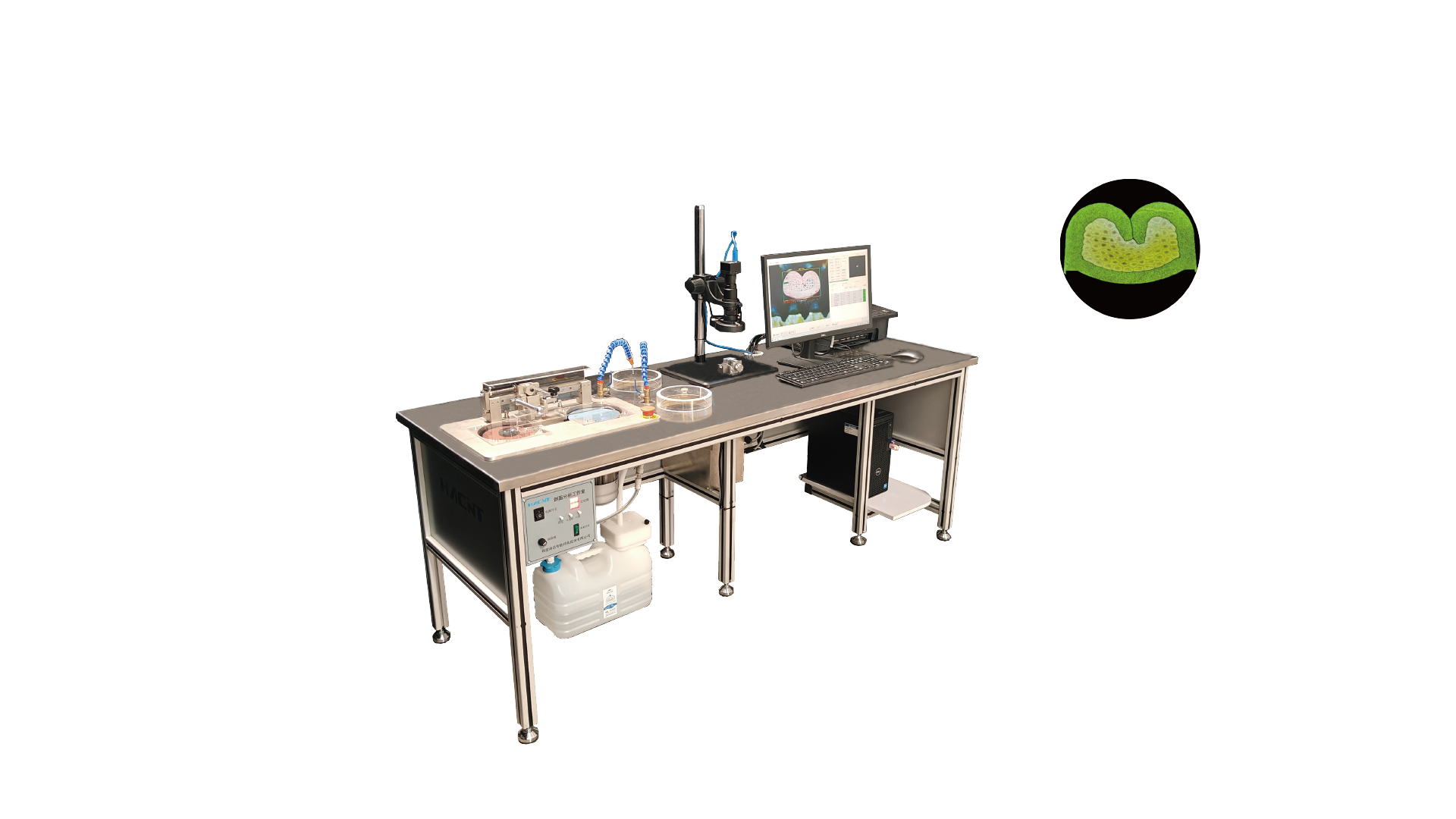

HBQ-052A Cross Section Analysis Center

This machine is designed professionally to guarantee high quality for wire harness industry. It will take 3~5minutes to go through procedures such as incision, erosion, cross-sectional image processing, testing analysis,…

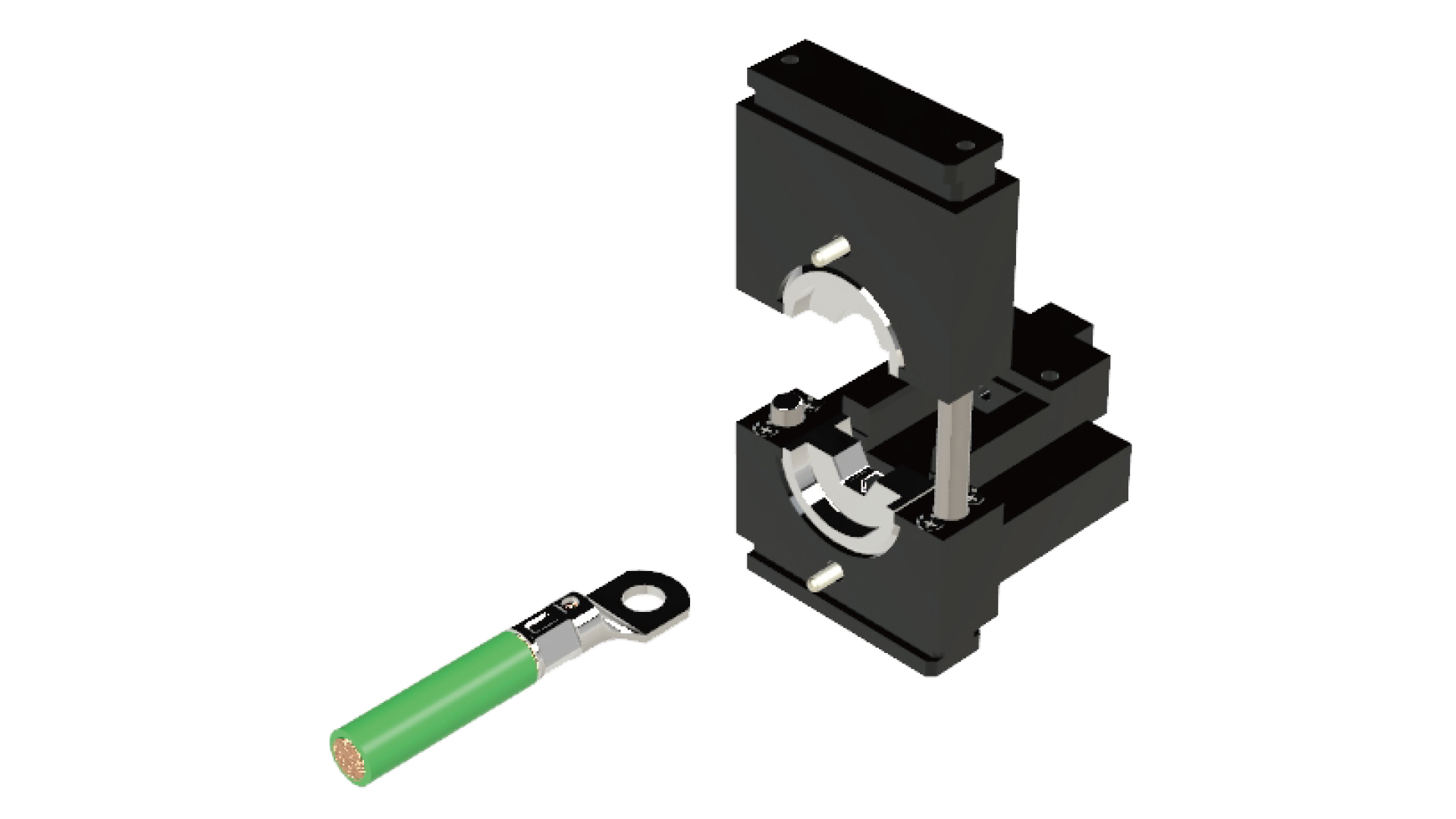

Product characteristics： Used for tubular air terminals and open single tail terminals; The modular structure allows crimping components to be ordered as separate components, reducing costs even further; Laser labeling for each part-unique ID.
CRIMPING APPLICATOR SERIES

WHCA CRIMPING APPLICATOR

WHCA crimping applicator is mainly used for tubular air terminals and open single tail terminals.

Affichage de 11 à 20 sur 34 produits
